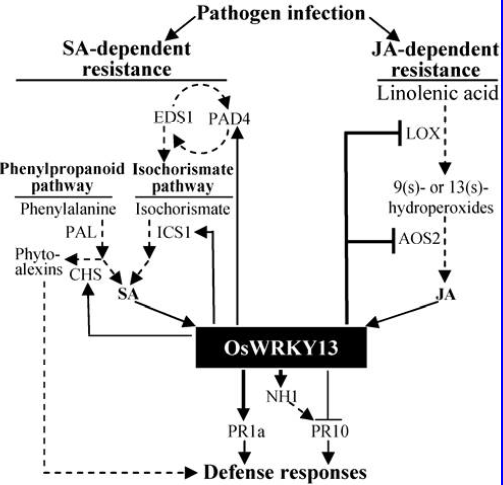

Defense signaling model for the roles of OsWRKY13 in regulation of salicylic acid (SA)- and jasmonic acid (JA)-dependent pathways. Thick solid lines indicate direct action of OsWRKY13 has been confirmed by protein-DNA binding assays; thin solid lines, regulation may be executed by direct or indirect action; dotted lines, regulation has been confirmed in rice or other plant species; the line ending with arrow, activation; and the line ending with perpendicular short line indicates suppression.
