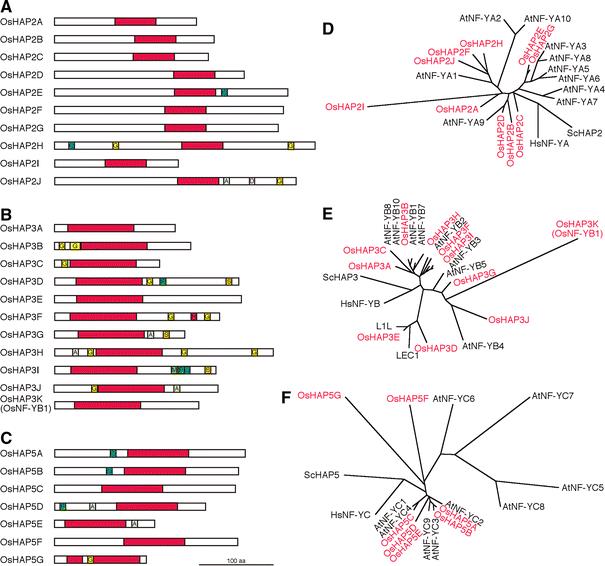

Fig. 1 HAP genes in rice. Schematic presentation of OsHAP2 proteins (a), OsHAP3 proteins (b) and OsHAP5 proteins (c). Shaded boxes indicate conserved domains in each HAP subunit. Boxes with a one-letter code of amino acid residues indicate stretches of five or more corresponding amino acid residues. Phylogenetic trees of HAP2 (d), HAP3 (e) and HAP5 (f). The trees were drawn on the basis of the amino acid sequences of the conserved domains in each subunit. OsHAP5D and OsHAP5E, and AtNF-YC3 and AtNF-YC9 have identical amino acid sequences in the conserved domain, respectively. ScHAP2 (M15243), ScHAP3 (M59079) and ScHAP5 (U19932) are proteins from yeast Saccharomyces cerevisiae, and HsNF-YA (M59079), HsNF-YB (L06145) and HsNF-YC (U78774) are proteins from human Homo sapiens
