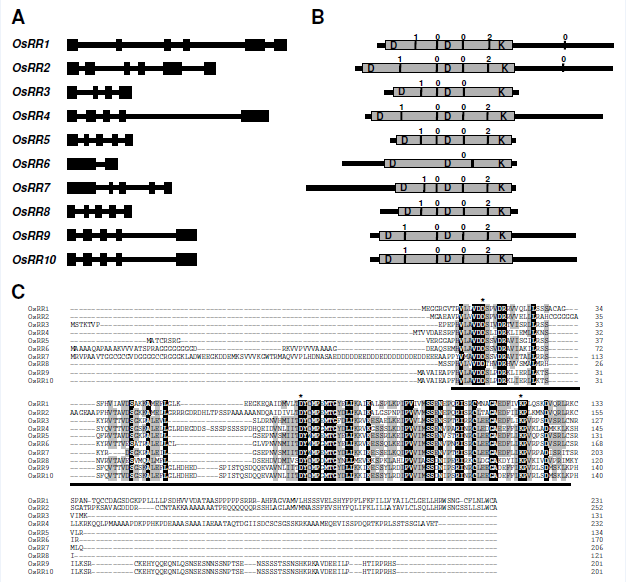

Type-A response regulators in rice. (A) Exon-intron organization of OsRR genes. Exons and introns are represented by black boxes and lines, respectively. (B) Schematic representation of OsRR proteins (aligned with respect to the second conserved Asp (D) residue). The conserved receiver domain is represented as gray box with D-D-K residues. The black vertical bars represent intron position. The numbers 0, 1 and 2 above the vertical bars represent the phase 0, 1 and 2 introns, respectively. (C) Multiple alignments of the OsRR proteins obtained with ClustalX. Fully and partially conserved (present in more than 50% of aligned sequences) residues are highlighted in black and gray boxes, respectively. Gaps (marked with dashes) have been introduced to maximize the alignments. The conserved receiver domain has been underlined. Conserved Asp and Lys residues are marked with asterisks.
